QB75N-SAMSUNG


KEY FEATURES
  • Revitalize customer engagement in retail and transportation settings
  • Elevate content quality through a unique combination of picture-enhancing features
  • Facilitate secure, PC-free meetings through rigid three-layer protection
  • Manage performance and identify potential disruptions with detailed remote monitoring
  • Maintain content integrity through dust-resistant exterior glass

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

4K UHD

Resolution

75"

Screen Size

60Hz NewEdge

Display Technlogy

350 nit

Brightness

3 Year

Warranty

16/7

Run Time

PANEL OB43N QB49N QB55N QB65N QB75N
Diagonal Size 43″ 49″ 55″ 65″ QB75N
Type New Edge New Edge New Edge New Edge New Edge
Resolution UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160) UHD (3840 x 2160)
Pixel Pitch(mm) 0.2451 X 0.2451 0.093 X 0.279 0.105 X 0.315 0.372 X 0.372 0.42975 X 0.42975
Brightness(Typ.) 350 350 350 350 350
Contrast Ratio 5000:1 4000:1 4000:1 6000 :1 6000 :1
Viewing Angle(H/V) 178/178 178/178 178/178 178 /178 178 /178
Response Time(G-to-G) 8ms 8ms 8ms 8ms 8ms
Display Colors 6.7M 6.7M 6.7M 6.7M 6.7M
Color Gamut 72% 72% 72% 72% 72%
Operation Hour 16/7 16/7 16/7 16/7 16/7
DISPLAY
Dynamic C/R MEGA MEGA MEGA MEGA MEGA
H-Scanning Frequency 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ 48 ~ 75HZ
Maximum Pixel Frequency 594MHz 594MHz 594MHz 594MHz 594MHz

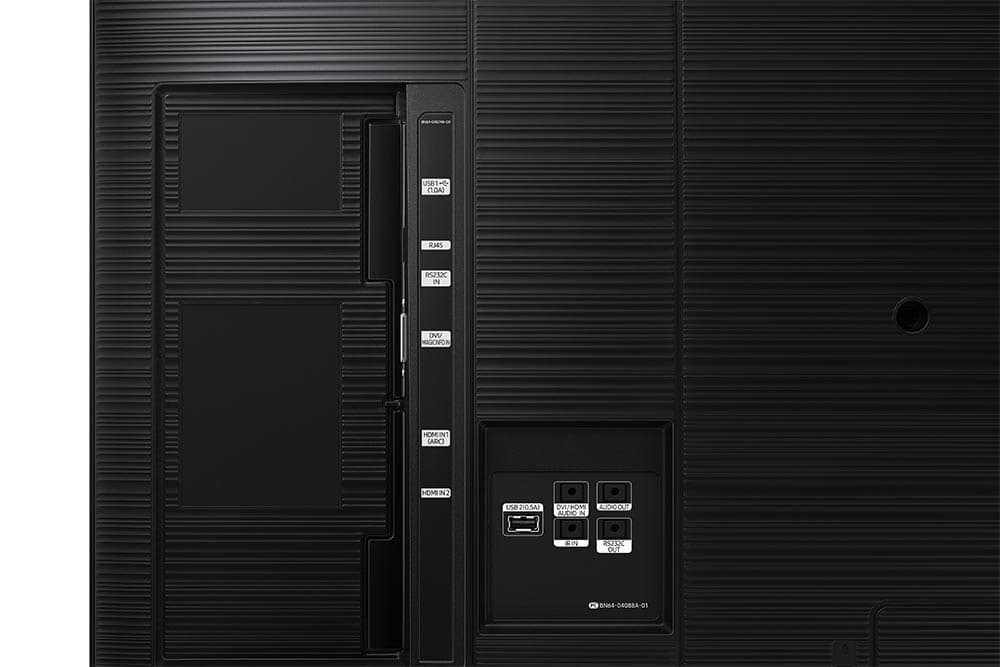

CONNECTIVITY
Input RGB DVI-D DVI-D DVI-D DVI-D DVI-D
Input Video HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2) HDMI 2.0 (2)
Input HDCP HDCP 2.2 HDCP 2.2 HDCP 2.2
Input USB USB 2.0 (2) USB 2.0 (2) USB 2.0 (2) USB 2.0 (2) USB 2.0 (2)
Output RGB N/A N/A N/A N/A N/A
Output Video N/A N/A N/A N/A N/A
Output Audio Stereo Mini Jack Stereo Mini Jack Stereo Mini Jack Stereo Mini Jack Stereo Mini Jack
External Control RS232C (in/out) thru stereo jack, RJ45 RS232C (in/out) thru stereo jack, RJ45 RS232C (in/out) thru stereo jack, RJ45 RS232C (in/out) thru stereo jack, RJ45 RS232C (in/out) thru stereo jack, RJ45
External Sensor IR IR IR IR IR
POWER CONSUMPTION
Max[W/h] 121 132 143 176 220
Typical[W/h] 76 91 96 125 159
Rating [W/h] 110 120 130 160 200
Sleep mode 0.5 0.5 0.5 0.5 0.5
Off mode N/A N/A N/A N/A N/A
MECHANICAL SPECIFICATION
Dimension (mm) Set 970.2 X 563.2 X 58.5 1102.8 X 637.8 X 59.4 1238.6 X 714.2 X 59.0 1457.5 X 837.3 X 59.4 1684.6 X 966.7 X 60.4
Dimension Package 943.2 X 531.4 X 1081.5 1075.8 X 606.0 X1233.7 1211.6 X 682.4 X 1389.4 1430.5 X 805.5 x1640.6 1652.2 X 930.3 x1895.0
Weight (kg) Set 10 13.5 17.8 25.2 37.8
Weight Package 13.3 17.7 22.4 33.1 50.6
VESA Mount (mm) 200 x 200 mm 200 x 200 mm 200 x 200 mm 400 x 400 mm 400 x 400 mm
Bezel Width (mm) 13.5 (Top,Side),
77.7 (Bottom)
13.5 (Top,Side),
77.7 (Bottom)
13.5 (Top,Side),
77.7 (Bottom)
13.5 (Top,Side),
77.7 (Bottom)
76.2 (top,side), 79.3(bottom)
OPERATION 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C
Humidity 10~80% 10~80% 10~80% 10~80% 10~80%
FEATURE
Key Features UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0 UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0 UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0 UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0 UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0
Special Features Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x, Wi-Fi
Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x, Wi-Fi
Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x, Wi-Fi
Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x, Wi-Fi
Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x, Wi-Fi
INTERNAL PLAYER
Processor Coretex A721.7GHz Quad-Core CPU Coretex A721.7GHz Quad-Core CPU Coretex A721.7GHz Quad-Core CPU Coretex A721.7GHz Quad-Core CPU Coretex A721.7GHz Quad-Core CPU
On-Chip Cache Memory Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB
Clock Speed 1.7GHz 1.7GHz 1.7GHz 1.7GHz 1.7GHz
Main Memory Interface 2.5GB / LPDDR41.5GHz 64bit 2.5GB / LPDDR41.5GHz 64bit 2.5GB / LPDDR41.5GHz 64bit
Graphics Graphic resolution: 1920×1080,
Output resolution: 3840×2160 (Scale up from graphic processing result.)
Graphic resolution: 1920×1080,
Output resolution: 3840×2160 (Scale up from graphic processing result.)
Graphic resolution: 1920×1080,
Output resolution: 3840×2160 (Scale up from graphic processing result.)
Graphic resolution: 1920×1080,
Output resolution: 3840×2160 (Scale up from graphic processing result.)
Graphic resolution: 1920×1080,
Output resolution: 3840×2160 (Scale up from graphic processing result.)
Storage (FDM) 8GB (3.88GB Occupied by 0/5, 4.12GB Available) 8GB (3.88GB Occupied by 0/5, 4.12GB Available) 8GB (3.88GB Occupied by 0/5, 4.12GB Available) 8GB (3.88GB Occupied by 0/5, 4.12GB Available) 8GB (3.88GB Occupied by 0/5, 4.12GB Available)
Multimedia VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG
IO Ports USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0
CERTIFICATION
Safety 60950-7 60950-7 60950-7 60950-7 60950-7
EMC Class A Class A Class A Class A Class A
Environment ENERGY ST AR 7.0 (US A) ENERGY ST AR 7.0 (US A) ENERGY ST AR 7.0 (US A) ENERGY ST AR 7.0 (US A) ENERGY ST AR 7.0 (US A)
ACCESSORY
Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Mount WMN4070SE WMN4070SE WMN4070SE WMN4070SE WMN4070SE
Specialty CML400XK CML400XK CML400XK CML400XK CML400XK





The QB75N Series

The Samsung QB75N display delivers content with added precision and visual impact while also improving operational efficiency. Through advanced UHD picture quality, the Samsung QB75N displays foster an inviting and memorable viewing environment in any indoor setting. Additionally, Backed by the powerful TIZEN operating system, the QB75N displays feature a host of business-ready functionalities while also protecting business and customer data through enhanced security measures. Inquire about this Samsung 75″ SMART Signage Display.
