Sharp PN-E603 60″ Slim HD LCD signage display for business
Sharp PN-E603 60″ Slim HD LCD signage display for business
Sharp PN-E603 60″ Slim HD LCD signage display for business

Sharp PN-E603 60″ Slim HD LCD signage display for business

PN-E603-SHARP

KEY FEATURES
  • 60″ Class (60.1 Diagonal) Screen Size
  • Brilliant High Definition (1920 x 1080) LED Display
  • Thin and Lightweight Design using edge-lit LED Backlighting
  • Optional Media Player PC
  • Built-in 10W per Channel Stereo Audio System
  • Landscape and Portrait Mode Compatible
  • Engineered for 24/7 Commercial Use

OTHER FEATURES

  • Sharp Digital Signage Software

    Sharp Digital Signage Software is versatile management software that provides total support for the creation, scheduling, distribution, and display of a wide range of content for the Sharp PNE803/E703/E603. To meet the various needs of its customers, Sharp offers different versions of the software: PN-SS01 for stand-alone systems; PN-SS02 Network, PN-SS05 Pro, and PN-SW05 Pro Web Server versions for networked systems; and PN-SV01 Viewer Version.

  • Enlarge (Zoom) Display Mode

    Multiple monitors can be grouped together to display one enlarged image, thanks to Enlarge (Zoom) Display mode, which corrects the framing of that image to eliminate misalignment between signage display monitors.

  • VESA-Compliant Mounts

    VESA-compliant mounts provide right/left pivot and swivel, ensuring a high level of safety when PNE603 Sharp LCD panels are mounted on a wall or suspended from a ceiling.


Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

60"

Screen Size

Direct View LCD

Display Technlogy

24/7

Run Time

450 nit

Brightness

3 Year

Warranty

INSTALLATION Landscape / Portrait
LCD PANEL 60-inch widescreen (152.5 cm diagonal) UV2A LCD
Max. Resolution 1,920 x 1,080 pixels
Max. Display Colours (approx.) 1.06 billion colours
Pixel Pitch 0.692 x 0.692 mm
Brightness*1 450 cd/m2
Contrast Ratio 4,000 : 1
Viewing Angles (H/V) 176°/176° (CR less than 10) TBD
Active Screen Area (W x H) 1,329.1 x 747.6 mm (52 5/16″ x 29 7/16″)
Response Time 6 ms (grey to grey, avg.)
Backlight LED, edge lit
Computer Input Video Analogue RGB (0.7 Vp-p) [75Ω], Digital (conforms to DVI 1.0 standards), DisplayPort
Synchronisation Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative)
Plug & Play ESA DDC2B
Power Management VESA DPMS, DVI DMPM
Video Colour System NTSC (3.58 MHz, 4.43 MHz), PAL, PAL60, SECAM
Input Terminals DisplayPort x 1, DVI-I x 1, Mini D-sub 15-pin x 1, HDMI x 2*3, 3.5 mm-diameter mini stereo jack x 2, RS-232C x 1
Output Terminals DisplayPort x 1 (supports video signals only), DVI-D x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1
Input/Output Terminals LAN port x 1
Speaker Output 10 W + 10 W
Power Supply 100V – 240V AC, 50/60 Hz
Power Consumption 180 W
Environmental Conditions 0°C to 40°C
Dimensions (W x D x H) (approx.)
(display only)
1,378 x 39.4 x 794 mm (54 1/4″ x 1 9/16″ x 31 1/4″)
Weight (approx.) 32 kg (70.5 lbs)
Main Accessories Power cord, remote control unit, battery (AA size) x 2, set-up manual, vertical sticker (logo), vertical sticker (operation panel)*4, cover SHARP logo,
cable clamp, CD-ROM

The PN-E603 Series

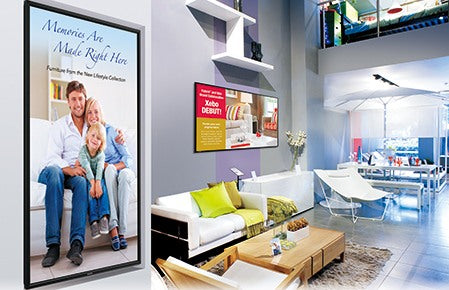

Sharp’s 60-inch-class (60.1″ diagonal) PN-E603 professional display combines full-HD image quality, a stylishly thin profile, and energy efficiency to create an appealing professional signage solution for a wide range of applications. With its sleek design, around-the-clock operation, and support for landscape and portrait installations, this display offers an amazing degree of flexibility. Sharp’s 60-inch-class (60.1″ diagonal) PNE603 professional display combines full-HD image quality, a stylishly thin profile, and energy efficiency to create an appealing professional signage solution for a wide range of applications. With its sleek design, around-the-clock operation, and support for landscape and portrait installations, this display offers an amazing degree of flexibility. In hotel lobbies, conference rooms, retail spaces and elsewhere, the Sharp PNE603 will grab and keep the attention of your target audience. Inquire about this Sharp 60 Inch Signage Display today.

Key Features

Superb Image Quality

The Sharp PNE603 LCD panels incorporate Sharp’s UV2A* technology, which prevents light leakage and ensures highly efficient use of light from the backlight. Thanks to this technology, the 60 inch signage display monitors achieve truly bright whites and extremely deep blacks. All three models support full-HD (1920 x 1080 pixel) resolution, for beautifully clear rendering of detailed text and graphics.

Thin, Lightweight Design

Streamlined for a pleasing appearance and minimal protruding parts, these professional LCD monitors boast exceptionally thin profiles. At their thickest point, the Sharp PNE603 measures just 39.4 mm (1 9/16″). The thin and lightweight design of Sharp PNE603 60 inch signage display monitors gives them a stylish profile and facilitates easy installation in a variety of settings.

Choice of Screen Size and Installation Mode

The choice of three screen sizes: 80, 70, or 60 inches—means you can select the high-quality professional LCD signage display monitor that’s right for the type of content you plan to show and for your specific installation purposes. These monitors can be installed in either a landscape or a portrait orientation. Portrait mode offers the look and impact of a poster, while landscape mode puts wide images on vivid display. Optimize your choice and maximize your audience impact.

24/7 Operation

Built solid, the Sharp PNE603 signage display monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.

Sharp Digital Signage Software

Sharp Digital Signage Software is versatile management software that provides total support for the creation, scheduling, distribution, and display of a wide range of content for the Sharp PNE603 signage display monitor. To meet the various needs of its customers, Sharp offers different versions of the software: PN-SS01 for stand-alone systems; PN-SS02 Network, PN-SS05 Pro, and PN-SW05 Pro Web Server versions for networked systems; and PN-SV01 Viewer Version.

Dual-Screen Display

PiP (Picture-in-Picture) mode allows an AV-sourced image to be displayed within a PC-sourced one (or vice versa), whereas PbyP (Picture-by-Picture) mode puts images from AV and PC sources side by side for split-screen viewing on the Sharp PNE603 60 inch signage display.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.

Read more...
