Name: Samsung DM40E 40″ DM series, FHD, 450 Nits, Slim Direct-Lit LED Display, 24/7, 3 Year Warranty
Brand: Samsung
SKU: DM40E-SAMSUNG
Availability: OutOfStock

Samsung DM40E 40″ DM series, FHD, 450 Nits, Slim Direct-Lit LED Display, 24/7, 3 Year Warranty

Samsung’s DM40E displays provide around the clock reliability to meet your business’ 24/7 operating requirements, at a competitive price. Deliver an outstanding visual experience with Full HD resolution on the screen of this 40-inch LED display, while its lightweight design ensures installation ease and a full range of connectivity inputs offer flexible content options.

Reliable 24/7 Operation and Enhanced System-on-Chip Performance with a Quad Core CPU

Sleek Industrial Design with a 9.5mm Bezel and Ultra-Slim 2.0″ Chassis

Built-In Wi-Fi^® for Expanded Connectivity on the DM40E

Transform Your Display with an Optional Touch Overlay for a PC-Less Touch Solution

Interactive Display Solutions Brochure

32" 40" 48" 55" 65" 75"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

40"

Screen Size

60Hz D-LED Local Dim. BLU

Display Technlogy

450 nit

Brightness

3 Year

Warranty

24/7

Run Time

Set Dimension (W x H x D)(mm) : 906.6 X 524.7 X 49.9

Panel
DIAGONAL SIZE	40″	TYPE	60Hz D-LED BLU
RESOLUTION	1920 X 1080(FHD)	PIXEL PITCH(MM)	0.15375(H) x 0.46125(V)
ACTIVE DISPLAY AREA(MM)	885.6(H) x 498.15(V)	BRIGHTNESS(TYP.)	450 nit
CONTRAST RATIO	5000:1	VIEWING ANGLE(H/V)	180:58:00
RESPONSE TIME(G-TO-G)	8ms	DISPLAY COLORS	10bit Dithering – 1.07Billion
COLOR GAMUT	0.72
Display
DYNAMIC C/R	50,000:1	H-SCANNING FREQUENCY	30 ~ 81kHZ
V-SCANNING FREQUENCY	N/A	MAXIMUM PIXEL FREQUENCY	148.5MHz
Sound
SPEAKER TYPE	Built in Speaker(10W + 10W)

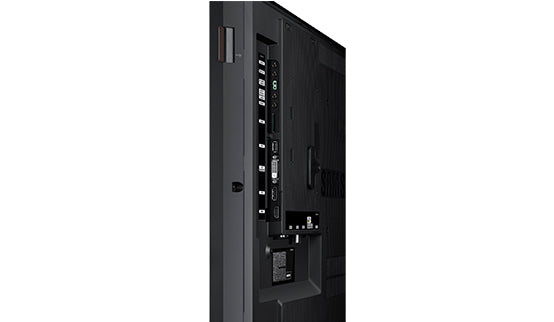

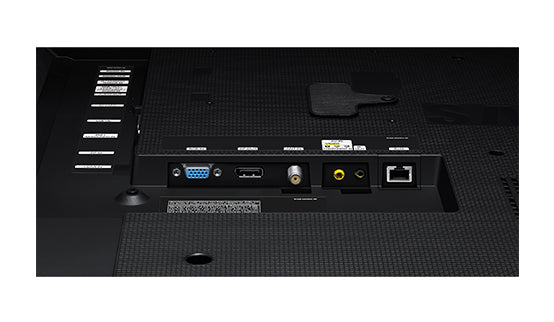

Connectivity
INPUT	RGB	Analog D-SUB, DVI-D(HDMI Common), Display Port 1.2
	VIDEO	HDMI1, HDMI2(except KR, NA) Component(CVBS Common)
	AUDIO	Stereo mini Jack
	USB	USB 2.0 x 1
OUTPUT	RGB	DP1.2(Loop-out)
	VIDEO	N/A
	AUDIO	Stereo mini Jack
	POWER OUT	N/A
EXTERNAL CONTROL		RS232C(in/out) thru stereo jack, RJ45
EXTERNAL SENSOR		IR, Ambient Light
Power
TYPE		Internal
POWER SUPPLY		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION	MAX[W/H]	121
	TYPICAL[W/H]	81 (w/w), 44 (us), 85 (kor)
	BTU(MAX)	412.61
	SLEEP MODE	less than 0.5W
	OFF MODE	less than 0.5W
Mechanical Specification
DIMENSION (MM)	SET	906.6 X 524.7 X 49.9
DIMENSION (MM)	PACKAGE	1012 X 605 X 138
WEIGHT (KG)	SET	7.52
WEIGHT (KG)	PACKAGE	9.1
PACKAGE	N/A
VESA MOUNT		200*200mm
PROTECTION GLASS		N/A
STAND TYPE		Foot Stand (Optional)
MEDIA PLAYER OPTION TYPE		Embbeded, SBB(Attachable)
BEZEL WIDTH (MM)		9.5 (Top/Side), 15.0 (Bottom)
Operation
RECOMMENDED USAGE HOURS	24/7
OPERATING TEMPERATURE	0.0 ℃ ~ 40.0 ℃	HUMIDITY	10.0 % ~ 80.0 %
Feature
KEY FEATURES		Slim & Light LFD with Built-in MagicInfo Player S3
SPECIAL FEATURES		H/W: Super Clear Coating, Temperature Sensor, Video Wall(15×15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot, Tuner(only for NA, KR)S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
INTERNAL PLAYER	PROCESSOR	Cortex-A9 1GHz Quad Core CPU
	ON-CHIP CACHE MEMORY	L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
	CLOCK SPEED	1GHz CPU Quad
	MAIN MEMORY INTERFACE	1.5GB Dual 48bit DDR3-933 (1866MHz)
	GRAPHICS	2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
	STORAGE (FDM)	8GB (2.65GB Occupied by O/S, 5.35GB Available, )
	MULTIMEDIA	Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
	IO PORTS	USB 2.0
	OPERATING SYSTEM	Samsung Proprietary OS(VDLinux)
	Certification
SAFETY	CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 IRAM (Argentina ) : IRAM+IEC60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 CSA (Canada) : cUL RCM(Australia) : IEC60950-1/AS/NZS 60950-1 BIS(India) : IEC60950-1 / IS13252 TUV (Germany) : CE NEMKO (Norway) : CE
EMC	FCC (USA) Part 15, Subpart B Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A CCC(China) :GB9254-2008 GB17625.1-2012 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ENVIRONMENT	ENERGY STAR 6.0 (USA)
Accessory
INCLUDED		Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
OPTIONAL	STAND	STN-L3240E
	MOUNT	WMN4070SD, WMN450MD, WMN250MD
	SPECIALTY	CML400D (Ceiling Mount)
Media Player
MEDIA PLAYER	SBB (Optional)

Download Specs PDF

The DM40E Series

Samsung’s DM40E displays provide around the clock reliability to meet your business’ 24/7 operating requirements, at a competitive price. Deliver an outstanding visual experience with Full HD resolution on the screen of this 40-inch LED display, while its lightweight design ensures installation ease and a full range of connectivity inputs offer flexible content options.

Features

Reliable 24/7 Continuous Operation
Innovative Samsung cooling technologies on the DM40E allow your message to be displayed with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.

Enhanced System-on-Chip Performance with a Quad Core CPU
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung’s SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

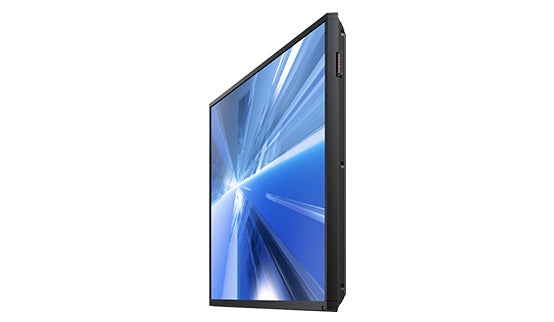

Sleek Industrial Design
The DM40E’s 9.5mm bezel provides a sleek, elegant look that can be polished with optional customizable bezel trim kits in matte black or white. And the stylish, ultra-slim 2.0″ chassis helps simplify installation while meeting ADA compliance requirements.

Slim Direct-Lit LED Backlight
Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 450 nits brightness and a 5,000:1 contrast ratio on the DM40E.

Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.

Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
