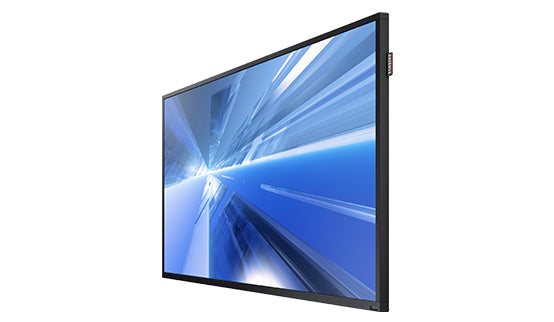

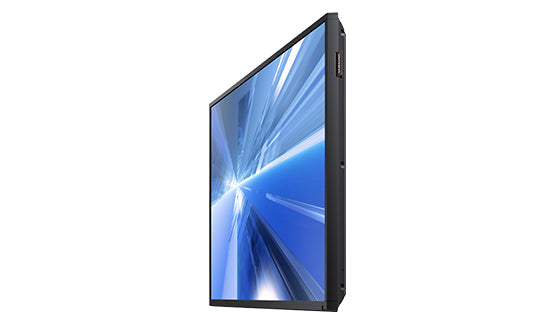

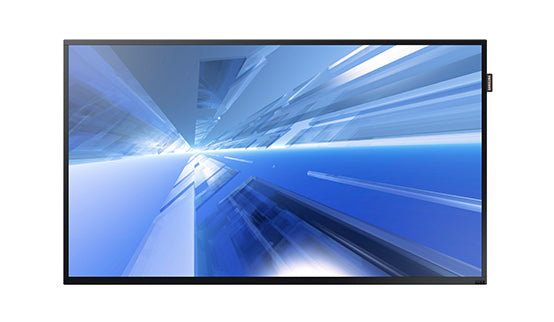

| LH48DMEPLGA Set Dimension (W x H x D)(mm) : 1075.1 X 619.4 X 49.9 |
| Panel – DM48E |
|
|
|
| DIAGONAL SIZE |
48″ |
TYPE |
60Hz D-LED BLU |
| RESOLUTION |
1920 X 1080(FHD) |
PIXEL PITCH(MM) |
0.183(H) x 0.549(V) |
| ACTIVE DISPLAY AREA(MM) |
1054.08(H) x 592.92(V) |
BRIGHTNESS(TYP.) |
450 nit |
| CONTRAST RATIO |
5000:1 |
VIEWING ANGLE(H/V) |
180:58:00 |
| RESPONSE TIME(G-TO-G) |
8ms |
DISPLAY COLORS |
10bit Dithering – 1.07Billion |
| COLOR GAMUT |
0.72 |
|
|
| Display |
|
|
|
| DYNAMIC C/R |
50,000:1 |
H-SCANNING FREQUENCY |
30 ~ 81kHZ |
| V-SCANNING FREQUENCY |
48 ~ 75HZ |
MAXIMUM PIXEL FREQUENCY |
148.5MHz |
| Sound |
|
|
|
| SPEAKER TYPE |
Built in Speaker(10W + 10W) |
|
|

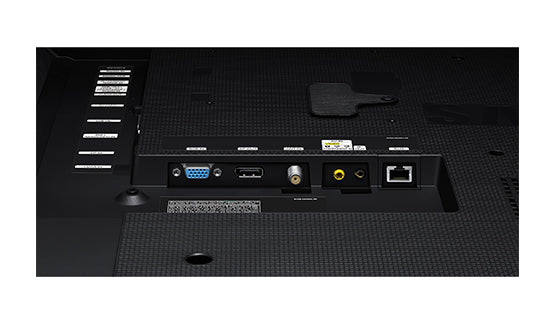

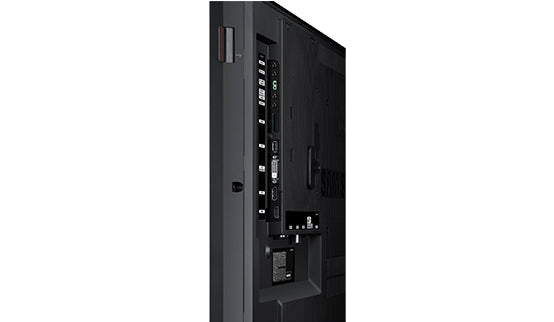

| Connectivity |
|
|
|
| INPUT |
RGB |
Analog D-SUB, DVI-D(HDMI Common), Display Port 1.2 |
|
|
VIDEO |
HDMI1, HDMI2(except KR, NA) Component(CVBS Common) |
|
|
AUDIO |
Stereo mini Jack |
|
|
USB |
USB 2.0 x 1 |
|
| OUTPUT |
RGB |
DP1.2(Loop-out) |
|
|
VIDEO |
N/A |
|
|
AUDIO |
Stereo mini Jack |
|
|
POWER OUT |
N/A |
|
| EXTERNAL CONTROL |
|
RS232C(in/out) thru stereo jack, RJ45 |
|
| EXTERNAL SENSOR |
|
IR, Ambient Light |
|
| Power |
|
|
|
| TYPE |
|
Internal |
|
| POWER SUPPLY |
|
AC 100 – 240 V~ (+/- 10 %), 50/60 Hz |
|
| POWER CONSUMPTION |
MAX[W/H] |
132 |
|
|
TYPICAL[W/H] |
94 (w/w), 50 (us), 96 (kor) |
|
|
BTU(MAX) |
450.12 |
|
|
SLEEP MODE |
less than 0.5W |
|
|
OFF MODE |
less than 0.5W |
|

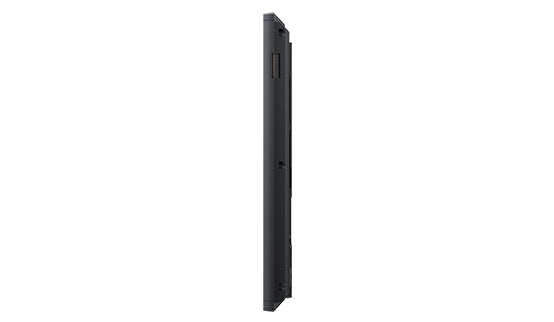

| Mechanical Specification |
|
|
|
| DIMENSION (MM) |
SET |
1075.1 X 619.4 X 49.9 |
|
|
PACKAGE |
1185 X 715 X 148 |
|
| WEIGHT (KG) |
SET |
11.1 |
|
|
PACKAGE |
14 |
|
| PACKAGE |
N/A |
|
|

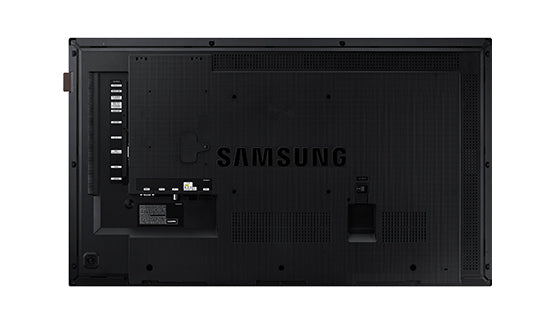

| VESA MOUNT |
|
400*400mm |
|
| PROTECTION GLASS |
|
N/A |
|
| STAND TYPE |
|
Foot Stand (Optional) |
|
| MEDIA PLAYER OPTION TYPE |
|
Embbeded, SBB(Attachable) |
|
| BEZEL WIDTH (MM) |
|
9.5 (Top/Side), 15.0 (Bottom) |
|
| Operation |
|
|
|
| RECOMMENDED USAGE HOURS |
24/7 |
|
|
| OPERATING TEMPERATURE |
0.0 ℃ ~ 40.0 ℃ |
HUMIDITY |
10.0 % ~ 80.0 % |
| Feature |
|
|
|
| KEY FEATURES |
|
Slim & Light LFD with Built-in MagicInfo Player S3 |
|
| SPECIAL FEATURES |
|
H/W: Super Clear Coating, Temperature Sensor, Video Wall(15×15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot, Tuner(only for NA, KR)S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter |
|
| INTERNAL PLAYER |
PROCESSOR |
Cortex-A9 1GHz Quad Core CPU |
|
|
ON-CHIP CACHE MEMORY |
L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
|
|
CLOCK SPEED |
1GHz CPU Quad |
|
|
MAIN MEMORY INTERFACE |
1.5GB Dual 48bit DDR3-933 (1866MHz) |
|
|
GRAPHICS |
2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES |
|
|
STORAGE (FDM) |
8GB (2.65GB Occupied by O/S, 5.35GB Available, ) |
|
|
MULTIMEDIA |
Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc. |
|
|
IO PORTS |
USB 2.0 |
|
|
OPERATING SYSTEM |
Samsung Proprietary OS(VDLinux) |
|
|
Certification |
|
|
| SAFETY |
CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 IRAM (Argentina ) : IRAM+IEC60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 CSA (Canada) : cUL RCM(Australia) : IEC60950-1/AS/NZS 60950-1 BIS(India) : IEC60950-1 / IS13252 TUV (Germany) : CE NEMKO (Norway) : CE |
|
|
| EMC |
FCC (USA) Part 15, Subpart B Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A CCC(China) :GB9254-2008 GB17625.1-2012 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 |
|
|
| ENVIRONMENT |
ENERGY STAR 6.0 (USA) |
|
|
| Accessory – DM48E |
|
|
|
| INCLUDED |
|
Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA) |
|
| OPTIONAL |
STAND |
STN-L4655E |
|
|
MOUNT |
WMN4270SD, WMN450MD, WMN250MD, WMN4675MD |
|
|
SPECIALTY |
CML450D (Ceiling Mount) |
|
| Media Player |
|
|
|
| MEDIA PLAYER |
SBB (Optional) |
|
|
