Name: Samsung DM75E 75″ DM series, FHD, 450 Nits, Slim Direct-Lit LED Display, 24/7, Landscape/Portrait, 3 Year Warranty
Brand: Samsung
SKU: DM75E-SAMSUNG
Availability: OutOfStock

Samsung DM75E 75″ DM series, FHD, 450 Nits, Slim Direct-Lit LED Display, 24/7, Landscape/Portrait, 3 Year Warranty

SAMSUNG DM-E SERIES MODEL: LH75DMEPLGA/GO

Samsung’s DM75E delivers 24/7 reliability on a large 75″ screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2″ chassis depth.

Reliable 24/7 operation and enhanced System-on-Chip performance with a quad core CPU

Built-In Wi-Fi^® for expanded connectivity and simple content mirroring from mobile devices

Transform your display with an optional touch overlay for a PC-less touch solution

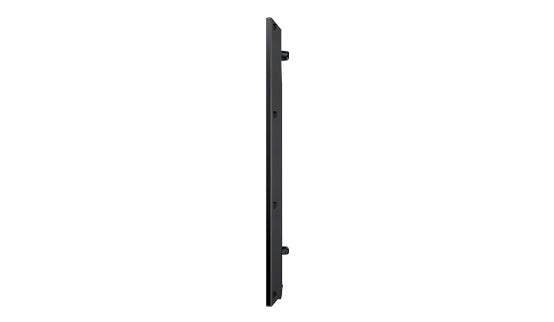

Slim 2.2″ chassis depth with slim direct-lit LED technology on the DM75E Samsung 75 Inch Slim LED TV

Interactive Display Solutions Brochure

32" 40" 48" 55" 65" 75"

The Samsung DB55E 55″ DB-E Series TV has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Samsung UE46C Model Specifications (Discontinued)

1080p FHD

Resolution

75"

Screen Size

60Hz D-LED Local Dim. BLU

Display Technology

450 nit

Brightness

3 Year

Warranty

24/7

Run Time

DM75E Set Dimension (W x H x D)(mm) : 1676.2 X 959.5 X 57.7

Panel – DM75E


DIAGONAL SIZE	75″	TYPE	60Hz D-LED BLU
RESOLUTION	1920 X 1080(FHD)	PIXEL PITCH(MM)	0.2865(H) × 0.8595(V)
ACTIVE DISPLAY AREA(MM)	1650.24(H) × 928.26(V)	BRIGHTNESS(TYP.)	450 nit
CONTRAST RATIO	5000:1	VIEWING ANGLE(H/V)	178:178
RESPONSE TIME(G-TO-G)	4ms	DISPLAY COLORS	10bit Dithering – 1.07Billion
COLOR GAMUT	72%

Display – DM75E


DYNAMIC C/R	50,000:1	H-SCANNING FREQUENCY	30 ~ 81kHZ
V-SCANNING FREQUENCY	48 ~ 75HZ	MAXIMUM PIXEL FREQUENCY	148.5MHz

Sound


SPEAKER TYPE	Built in Speaker(10W + 10W)

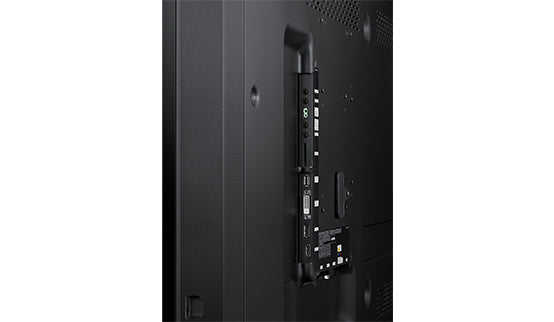

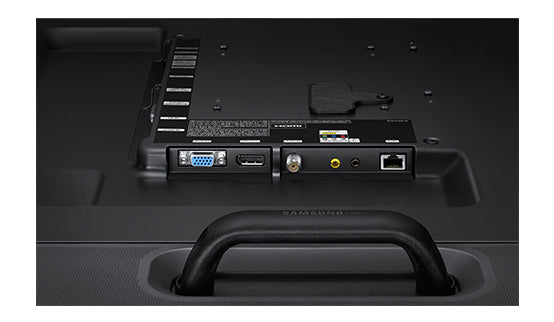

Connectivity – DM75E


INPUT	RGB	Analog D-SUB, DVI-D(HDMI Common), Display Port 1.2
	VIDEO	HDMI1, HDMI2(except KR, NA) Component(CVBS Common)
	AUDIO	Stereo mini Jack
	USB	USB 2.0 x 1
OUTPUT	RGB	DP1.2(Loop-out)
	VIDEO	N/A
	AUDIO	Stereo mini Jack
	POWER OUT	N/A
EXTERNAL CONTROL		RS232C(in/out) thru stereo jack, RJ45
EXTERNAL SENSOR		IR, Ambient Light

Power – DM75E


TYPE		Internal
POWER SUPPLY		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION	MAX[W/H]	308.0
	TYPICAL[W/H]	(W/W)230, (US)110, (KR)232
	BTU(MAX)	1050.28
	SLEEP MODE	less than 0.5W
	OFF MODE	less than 0.5W

Mechanical Specification – DM75E


DIMENSION (MM)	SET	1676.2 X 959.5 X 57.7
DIMENSION (MM)	PACKAGE	1810 X 1085 X 250
WEIGHT (KG)	SET	34.1
WEIGHT (KG)	PACKAGE	44.1
PACKAGE	N/A
VESA MOUNT		400*400mm
PROTECTION GLASS		N/A
STAND TYPE		Foot Stand (Optional)
MEDIA PLAYER OPTION TYPE		Embbeded, SBB(Attachable), PIM(Attachable)
BEZEL WIDTH (MM)		12.0 (Top/Side), 17.3 (Bottom)

Operation


RECOMMENDED USAGE HOURS	24/7
OPERATING TEMPERATURE	0.0 ℃ ~ 40.0 ℃	HUMIDITY	10.0 % ~ 80.0 %

Feature – DM75E


KEY FEATURES		Slim & Light LFD with Built-in MagicInfo Player S3
SPECIAL FEATURES		H/W: Super Clear Coating, Temperature Sensor, Video Wall(15×15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS332C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
INTERNAL PLAYER	PROCESSOR	Cortex-A9 1GHz Quad Core CPU
	ON-CHIP CACHE MEMORY	L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
	CLOCK SPEED	1GHz CPU Quad
	MAIN MEMORY INTERFACE	1.5GB Dual 48bit DDR3-933 (1866MHz)
	GRAPHICS	2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
	STORAGE (FDM)	8GB (2.65GB Occupied by O/S, 5.35GB Available, )
	MULTIMEDIA	Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
	IO PORTS	USB 2.0
	OPERATING SYSTEM	Samsung Proprietary OS(VDLinux)

Certification


SAFETY	CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
EMC	FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ENVIRONMENT	N/A

Accessory


INCLUDED		Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, COVER-JACK
OPTIONAL	STAND	STN-L7585F (New Stand)
	MOUNT	WMN4675MD,WMN4277SD,WMN6575SD
	SPECIALTY	CML450D (Ceiling Mount)

Media Player


MEDIA PLAYER	SBB(Optional), PIM(Optional)

DOWNLOAD PDF SPECS

The DM75E Series

SAMSUNG DM-E SERIES MODEL: LH75DMEPLGA/GO
Samsung’s DM75E delivers 24/7 reliability on a large 75″ screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2″ chassis depth.

Model LH65DMEPLGA Features

Large Signage With Reliable 24/7 Operation
Innovative Samsung cooling technologies on these large-size displays allow your message to be displayed with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements with the DM75E.

Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your DM75E display.

Easy Content Control
The Samsung SMART Signage platform on the DM75E, eliminates the need for an external media player. With Samsung MagicInfo content management software, selecting and scheduling software is simple to control with either an RS232 or LAN connection. Additionality connectivity includes HDMI, USB and D-Sub (analog).

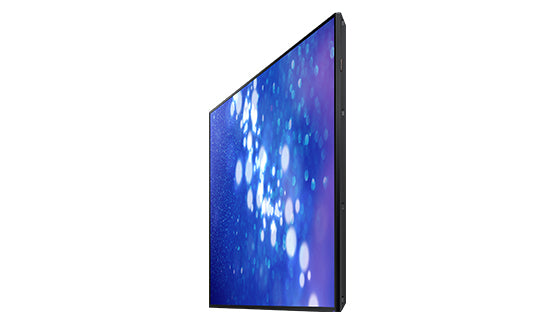

Sleek Industrial Design With Slim Direct-Lit LED Technology
Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit DM75E display featuring 1920 x 1080 Full HD resolution with 450 nits brightness and a 5,000:1 contrast ratio. A 2.2″ chassis depth provides a sleek, elegant look. And LED technology reduces power consumption and heat ouput.

Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business on the DM75E.
