Samsung QB65R 65″ QBR series, 4K UHD Smart Signage, 350 Nits, 16/7, 3 Year Warranty

Name: Samsung QB65R 65″ QBR series, 4K UHD Smart Signage, 350 Nits, 16/7, 3 Year Warranty
Brand: Samsung
SKU: QB65R-SAMSUNG
Availability: InStock

KEY FEATURES

Engage customers with lifelike images through ultra high-definition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
New symmetrical, slim design simplifies installation and complements any environment
Secure, PC-free operation through Knox and rigid three-layer protection

13" 24" 43" 50" 55" 65" 75" 85"

Unlock Exclusive Savings! Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

65"

Screen Size

E-LED BLU

Display Technlogy

16/7

Run Time

350 nit

Brightness

3 Year

Warranty

PANEL
Edge LED BLU	Screen Size (Inch) 43″ 49″ 55″ 65″ 75″	Resolution 3840*2160 (4K UHD)	Pixel Pitch(mm) 0.2451 x 0.2451
1428.48 (H) x 803.52 (V)	Brightness(Typ.) 350 nit	Contrast Ratio 4000:1
Viewing Angle(H/V) 178/178	Response Time(G-to-G) 8ms(Typ.)	Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit)	Color Gamut 92% (DCI-P3, CIE 1976)
Operation Hour 16/7	Haze 2%

DISPLAY
Dynamic C/R MEGA	H-Scanning Frequency 30 ~ 81kHZ	V-Scanning Frequency 48 ~ 75HZ	Maximum Pixel Frequency 594MHz

SOUND
Speaker Type Built in Speaker(10W + 10W)

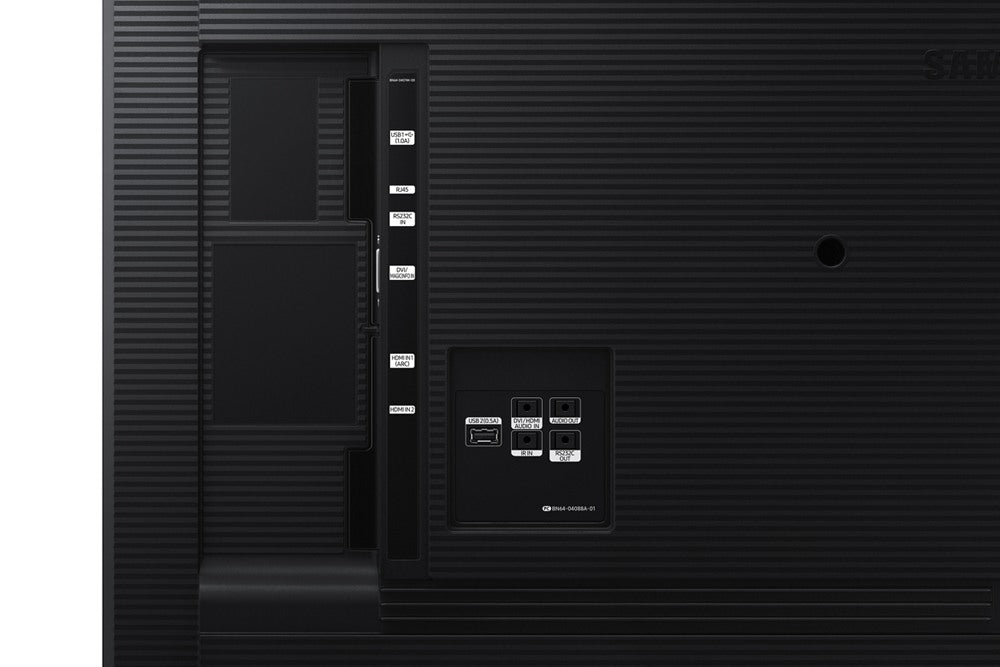

CONNECTIVITY – INPUT
RGB DVI-D, Display Port 1.2 (1)	Video HDMI 2.0 (2)	HDCP HDCP2.2	Audio Stereo mini Jack, DVI, HDMI
Output
RGB DVI-D	Audio Stereo Mini Jack, DVI/HDMI/ Audio(Common)	RS232C(in/out) thru stereo jack, RJ45	External Sensor IR

POWER
Type Internal	Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz	Max[W/h] 110	Typical[W/h] 74
Rating[W/h] 100	BTU(Max) 375.1	Sleep mode 0.5	Off mode N/A

MECHANICAL SPECS
1453.9 x 831.0 x 46.3	Package 1611 x 973 x 185	Weight (kg) Set 24.9	Package 33.3
VESA Mount (mm) 400 X 400	Stand Type Foot Stand (Optional)

OPERATION
Operating Temperature 0℃ ~ 40℃	Humidity 10% ~ 80%

FEATURE
Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT

INTERNAL PLAYER
Processor Coretex A72 1.7GHz Quad-Core CPU	On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	Clock Speed 1.7GHz	Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit
Graphics Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.)	Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)	Multimedia Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	IO Ports USB 2.0
Operating System Tizen 4.0 (VDLinux)

Download Specs PDF

The QBR Series

Through intelligent UHD upscaling technology, Samsung’s QB65R performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. Backed by Tizen 4.0, the QB65R also provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifies wall mounting and ensures seamless installation. Request a quote for the Samsung QB65R 65″ Commercial Signage Display.

Key Features

Samsung’s superior visual display technology has positioned them as the industry leader in the digital signage market for a decade and in the TV market for 12 years. As an expert in picture quality in the display industry, Samsung is able to deliver best in-class picture quality through their new QB65R Samsung 65″ Commercial Signage Display. The signage provides rich and flawless colors, sleek and durable design, powerful performance through Tizen 4.0 and secured protection. Samsung’s QB65R is also able to upscale even the lowest resolution content to UHD picture quality. For commercial displays, this technology advancement means highly visible signage with unmatched accuracy to help capture the attention of potential customers. It also means savings both in cost and time for businesses who can produce content more inexpensively at a lower resolution and still display it in stunning UHD quality.

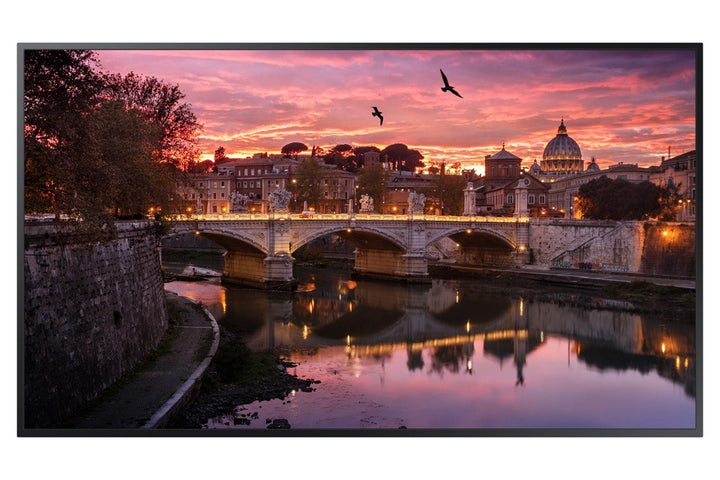

Incredible 4K picture quality
Samsung’s new QB65R commercial signage display is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images and intricate details better than ever before thanks to ultra high-definition 4K resolution.

QB65R UHD Upscaling
Samsung’s global leadership in display technology and picture quality spans more than a decade. Thanks to superior semi-conductor technology, Samsung has developed the most powerful video processor available. Additionally, intelligent UHD upscaling technology is a cutting-edge solution based on Samsung’s proprietary intelligent UHD engine that allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery with crisp edges and fine detail.

Dynamic Crystal Color
Dynamic Crystal Color is what brings the incredible, lifelike color to Samsung displays. Using 10-bit processing, the displays are able to showcase a wider spectrum of colors — up to a billion different shades — capturing subtle differences for flawless color expression, critical to businesses in ensuring brand consistency across communication channels. The QB65R Samsung 65″ commercial signage display also features HDR10+ functionality that converts standard definition (SDR) content to HDR quality for sharper contrast and more vivid colors.

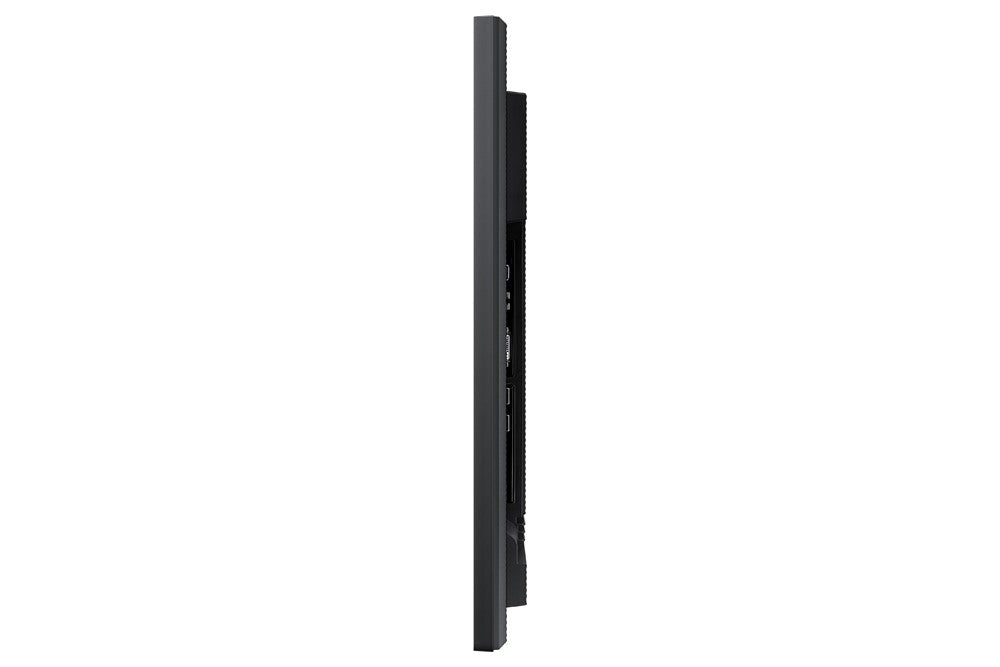

Slim and Symmetrical Design
The all-new slim and symmetrical design of the QB65R Samsung 65″ commercial signage display significantly simplifies wall mounting the display and ensures installation is a seamless process. The display’s power inlet direction has been redesigned to sit flush against the wall. The new design sets guarantees a long life cycle ensuring the QBR series will stand the test of time.

Powerful, all-in-one solution
The Samsung SMART Signage Platform (SSSP) is an open-source, all-in-one solution embedded in Samsung SMART signage that simplifies installation and maintenance. With SSSP, there is no need for any external devices to communicate with the server or play digital media enjoying easy development, reinforced capability with multiple web formats, and secured protection.

FAQ

Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
