Samsung QB24R 24″ QBR series, 4K UHD Smart Signage, 250 Nits, 16/7, 3 Year Warranty

Name: Samsung QB24R 24″ QBR series, 4K UHD Smart Signage, 250 Nits, 16/7, 3 Year Warranty
Brand: Samsung
SKU: QB24R-SAMSUNG
Availability: InStock

KEY FEATURES

Engage customers with lifelike images through ultra high-definition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
New symmetrical, slim design simplifies installation and complements any environment
Secure, PC-free operation through Knox and rigid three-layer protection

13" 24" 43" 50" 55" 65" 75" 85"

Model Specifications

4K UHD

Resolution

24"

Screen Size

E-LED BLU

Display Technlogy

16/7

Run Time

250 nit

Brightness

3 Year

Warranty

Panel

Diagonal Size	24
Type	ADS
Resolution	1920*1080 (Full HD)
Pixel Pitch(mm)	0.2745 x 0.2745
Active Display Area(mm)	527.04 (H) x 296.46 (V)
Brightness(Typ.)	250 nit
Contrast Ratio	1000:1
Viewing Angle(H/V)	178/178
Response Time(G-to-G)	14ms(Typ.)
Display Colors	16.7 M (real 6bit, dither 8bit)
Color Gamut	72%
Operation Hour	16/7
Haze	25%

Display

Dynamic C/R	MEGA
H-Scanning Frequency	56 ~ 84.5kHz
V-Scanning Frequency	48 ~ 75HZ
Maximum Pixel Frequency	594MHz

Sound

Speaker Type	Built in Speaker(5W)

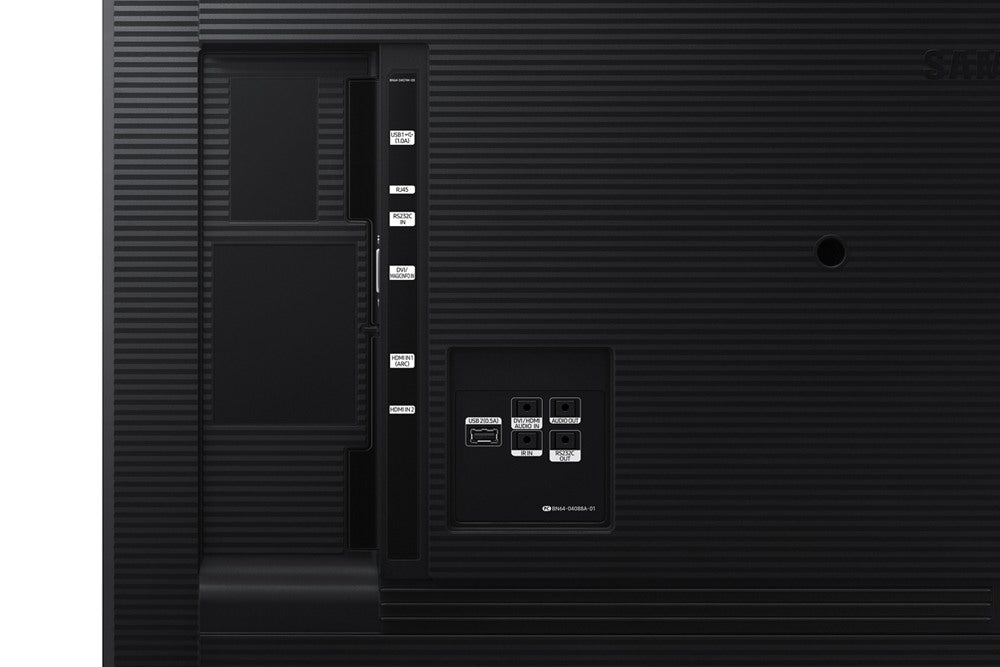

Connectivity

Input
RGB		-
Video		HDMI 1.4 (1)
HDCP		HDCP 2.2
USB		USB 2.0 x 1
Output
Audio		Stereo Mini Jack

External Control		RS232C(in) thru stereo jack, RJ45

Power

Type		Internal
Power Supply		AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]		38.5
Typical[W/h]		25
Rating[W/h]		35
BTU(Max)		131.3
Sleep mode		0.5

Mechanical Specification

Dimension (mm)
Set		547.9 x 334.4 x 31.8
Package		620 x 419 x 122
Weight (kg)
Set		3
Package		4.1
VESA Mount (mm)		100 X 100
Bezel Width (mm)		17.9mm(U/B), 9.4mm(L/R)

Operation

Operating Temperature	0 ℃ ~ 40 ℃	Humidity	10 % ~ 80.0 %

Feature

Key Features		Small Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation		N/A
Remote Control		N/A
Special Features		H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(5W 1ch), IP5x Rating, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player	Processor	Cortex A72 1.7GHz Quad-Core CPU
	On-Chip Cache Memory	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
	Clock Speed	1.7GHz
	Main Memory Interface	2.5GB LPDDR4 1.5GHz 64bit
	Graphics	Graphic resolution : 1920x1080 Output resolution : 1920x1080 (Scale up from graphic processing result.)
	Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
	Multimedia	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG
	IO Ports	USB 2.0
	Operating System	Tizen 4.0 (VDLinux)

Certification

Safety		60950-1
EMC		Class B
Security		802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

Included		Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand		-
Mount		-
Specialty		-

Media Player

Media Player		N/A

Download Specs PDF

The QBR Series

Through intelligent UHD upscaling technology, Samsung’s QB43R performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. Backed by Tizen 4.0, the QB43R also provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifies wall mounting and ensures seamless installation. Inquire about the QB43R Samsung 43 Inch Smart Signage TV today!

Key Features

Samsung’s superior visual display technology has positioned them as the industry leader in the digital signage market for a decade and in the TV market for 12 years. As an expert in picture quality in the display industry, Samsung is able to deliver best in-class picture quality through their new QBR series. The signage provides rich and flawless colors, sleek and durable design, powerful performance through Tizen 4.0 and secured protection. Samsung’s QB43R is also able to upscale even the lowest resolution content to UHD picture quality. For commercial displays, this technology advancement means highly visible signage with unmatched accuracy to help capture the attention of potential customers. It also means savings both in cost and time for businesses who can produce content more inexpensively at a lower resolution and still display it in stunning UHD quality.

Incredible 4K picture quality
Samsung’s new QB43R is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images and intricate details better than ever before thanks to ultra high-definition 4K resolution.

QB43R UHD Upscaling
Samsung’s global leadership in display technology and picture quality spans more than a decade. Thanks to superior semi-conductor technology, Samsung has developed the most powerful video processor available. Additionally, intelligent UHD upscaling technology is a cutting-edge solution based on Samsung’s proprietary intelligent UHD engine that allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery with crisp edges and fine detail.

Dynamic Crystal Color
Dynamic Crystal Color is what brings the incredible, lifelike color to the QB43R Samsung 43 Inch Smart Signage TV. Using 10-bit processing, the displays are able to showcase a wider spectrum of colors — up to a billion different shades — capturing subtle differences for flawless color expression, critical to businesses in ensuring brand consistency across communication channels. The QBR series also features HDR10+ functionality that converts standard definition (SDR) content to HDR quality for sharper contrast and more vivid colors.

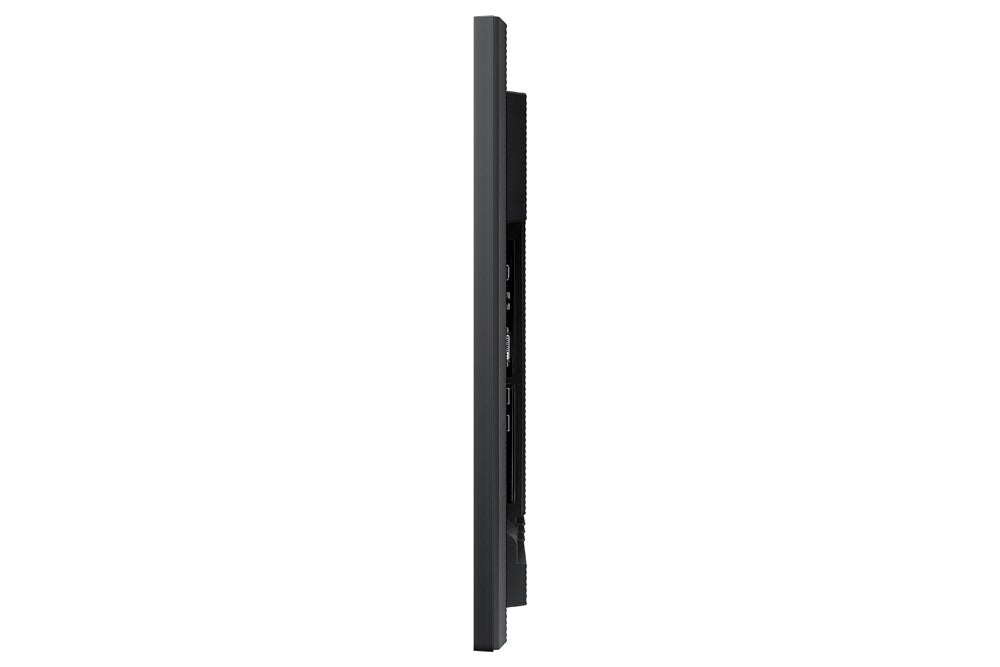

Slim and Symmetrical Design
The all-new slim and symmetrical design of the QB43R Samsung 43 Inch Smart Signage TV significantly simplifies wall mounting the display and ensures installation is a seamless process. The display’s power inlet direction has been redesigned to sit flush against the wall. The new design sets guarantees a long life cycle ensuring the QBR series will stand the test of time.

Powerful, all-in-one solution
The Samsung SMART Signage Platform (SSSP) is an open-source, all-in-one solution embedded in Samsung SMART signage that simplifies installation and maintenance. With SSSP, there is no need for any external devices to communicate with the server or play digital media enjoying easy development, reinforced capability with multiple web formats, and secured protection.

FAQ

Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
