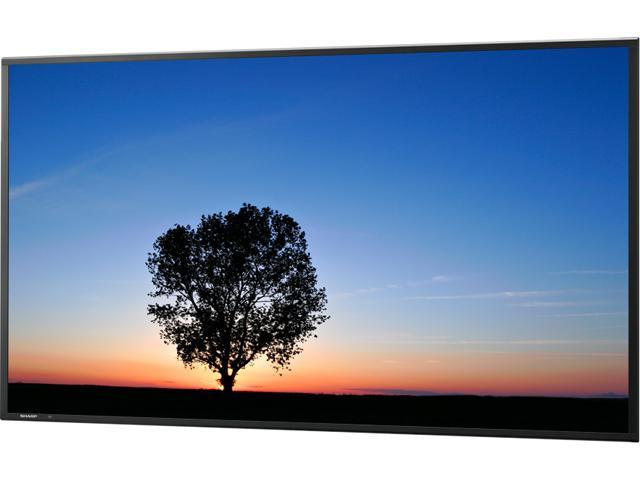

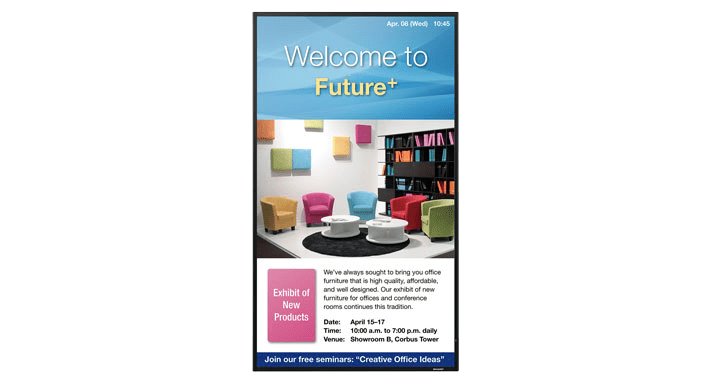

Sharp PN-R603 Front View Vertical
Sharp PN-R603 Front View Horizontal

Sharp PN-R603 professional LED display for digital signage


  • 60″ Class (59 – 1/2″ diagonal) Screen Size
  • Brilliant High Definition (1920 x 1080) LCD Display
  • Intel® Mini-OPS Expansion Slot supports the optional PN-ZB03H HDBaseT™ 2.0 and PN-ZB03W Wireless Expansion Boards
  • Landscape, Portrait, Face-up, Face-down Operation
  • Built-in 10 Watt per Channel Stereo Speakers
  • Engineered for 24/7 Commercial Use
  • 700 cd/m2 Brightness; 5,000:1 Contrast Ratio
  • Crestron Connected™ Compatibility

    Model Specifications

    1080p FHD



    Screen Size

    LCD with LED Backlight

    Display Technlogy


    Run Time

    700 nit


    3 Year


    INSTALLATION Landscape / Portrait
    LCD PANEL 60-inch widescreen (152.5 cm diagonal) UV2A LCD
    Max. Resolution 1,920 x 1,080 pixels
    Max. Display Colours (approx.) 1.06 billion colors
    Pixel Pitch 0.692 x 0.692 mm
    Brightness*1 700 cd/m2
    Contrast Ratio 4,000 : 1
    Viewing Angles (H/V) 176°/176° (CR less than 10)
    ACTIVE SCREEN AREA (W X H) 1,329.1 X 747.6 MM (52 5/16″ X 29 7/16″)
    Response Time 6 ms (grey to grey, avg.)
    Backlight LED, edge lit
    Computer Input Video Analogue RGB (0.7 Vp-p) [75], Digital (conforms to DVI 1.0 standards), DisplayPort 1.1
    Synchronisation Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative
    Input/Output Terminals LAN x 1
    Power Supply 100V – 240V AC, 50/60 Hz
    Power Consumption 200 W
    Environmental Conditions 0°C to 40°C
    Dimensions (W x D x H) (approx.)
    (display only)
    1,378 x 39.4 x 794 mm (54 1/4″ x 1 9/16″ x 31 1/4″)

    The PN-R603 Series

    Amply sized and attractively designed, Sharp’s 60 Inch Professional Slimline Display Monitors have the thin profile, high brightness, and low power consumption to accommodate a wide range of indoor digital signage applications. Exceptionally thin and lightweight, these streamlined monitors measure only 39.4 mm at their thickest point, making for easy, eye-pleasing installation. And with 700 cd/m2 brightness and edge-lit LED backlighting, PN-R603 monitors can be counted on for reliable, energy-efficient operation.

    Key Features


    Sharp PN-R603 60 Inch Professional Slimline Display Monitors owe their exceptionally thin profiles to edge-lit LED backlighting, where LED elements are located at the edges of the panel. Streamlined for a pleasing appearance and minimal protruding parts, these monitors measure only 39.4 mm at their thickest point and weigh only 43/32 kg, making for easy placement in offices, public spaces, stores, and other commercial establishments. Stylishly thin profiles also enable attractive wall mounting in a choice of portrait or landscape mode.


    The Sharp PN-R603 60 Inch Professional Slimline Display Panel incorporates Sharp’s UV2A technology, which ensures highly efficient use of light from the backlight and prevents light leakage for the display of truly bright whites and extremely deep blacks. A brightness of 700 cd/m2 supports these LCD monitors in their digital signage duties.


    Edge-lit LED backlighting on Sharp PN-R603 60 Inch Professional Slimline Display Monitors helps ensure reliable performance with low power consumption. In fact, Sharp PN-R603 monitors consume roughly 32.5/50% less energy than conventional CCFL-backlight displays.* And the PN-603 conforms to the ENERGY STAR® programmed, an international system for identifying energy-efficient products.


    A standard-equipped interface expansion board gives Sharp PN-R603 60 Inch Professional Slimline Displays a comprehensive range of input/output jacks, including the DisplayPort interface.


    Sharp PN-R603 60 Inch Professional Slimline Displays offer a choice of landscape or portrait installation, allowing customers to select the mode that best suits their display content and application. While portrait installation offers the look and impact of a poster, landscape installation puts wide images on vivid display.

    24/7 OPERATION

    Built solid, Sharp PN-R603 60 Inch Professional Slimline Display Monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.


    1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
    2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
    3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
